Band Saw Machine S-Series
링 절단기 : MAXS
S-800T / S-1300T
S-800T

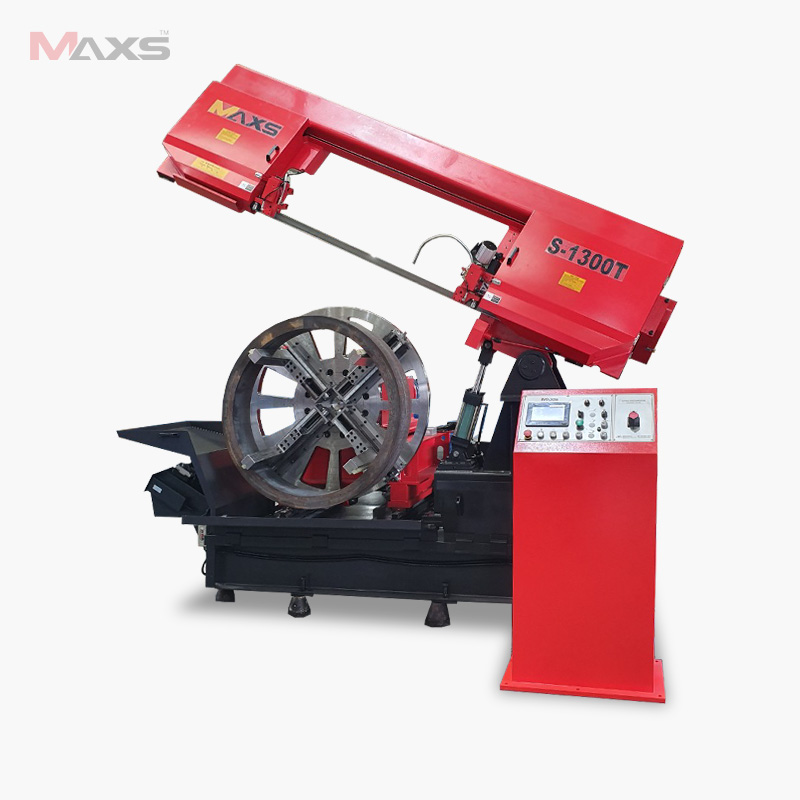

S-1300T
METERIAL
사양서
| 제품 | S-800T | S-1300T | |
|---|---|---|---|
| 절단능력 | 환재(φ) | 300 ~ 800 | 800 ~ 1300 |
| 11.81 ~ 31.50 (inch) | 31.50 ~ 51.18 (inch) | ||
| 톱날치수(폭x두께x길이)(mm) | 54 x 1.6 x 7240 | 54 x 1.6 x 7820 | |
| 2.13 x 0.06 x 285.04 (inch) | 2.13 x 0.06 x 307.87 (inch) | ||
| 테이플높이(mm) | 1099 | 1224 | |
| 43.27(inch) | 48.19(inch) | ||
| 기계치수(WxLxH)(mm) | 3785 x 3140 x 3190 | 4015 x 3155 x 3620 | |
| 49.02 x 123.62 x 125.59 (inch) | 58.07 x 124.21 x 142.52 (inch) | ||
| 기계무게(ton) | 6 | 8 | |
| 13,278(lbs) | 17,637(lbs) | ||
